IV-6

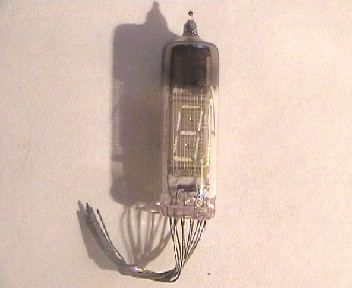

- a tiny little Digitron tube, diameter 12mm, height 40mm.

FIGURE HEIGHT 11mm

Parameter |
IV-6, western(DG-12M) |
---|---|

Picture colour | grin |

number of segments in sign | 8 |

rated (nominal) voltage of filament, U | 0,85...1,15(0,72...0,79) |

constant (fixed) voltage of grid, U | 25...30 |

pulse voltage of grid,U | 50...70 |

constant (fixed) voltage of anodes-segments, U | 25...30 |

pulse voltage of anodes-segments, U | 50...70 |

rated (nominal) current of consumption filament, mA | 50(80) |

effective range of consumption current, mA | 45...55(74...86) |

constant (fixed) current of grid, mA | 12(16...24) |

pulse current of grid, mA | 45 |

constant (fixed) current of anode-segment, mA | 0,8 |

pulse current of anode-segment, mA | 2 (3...4,5) |

Constancy summary current anodes-segments, mA | 0,8 |

Porosity | 10 |
